Description

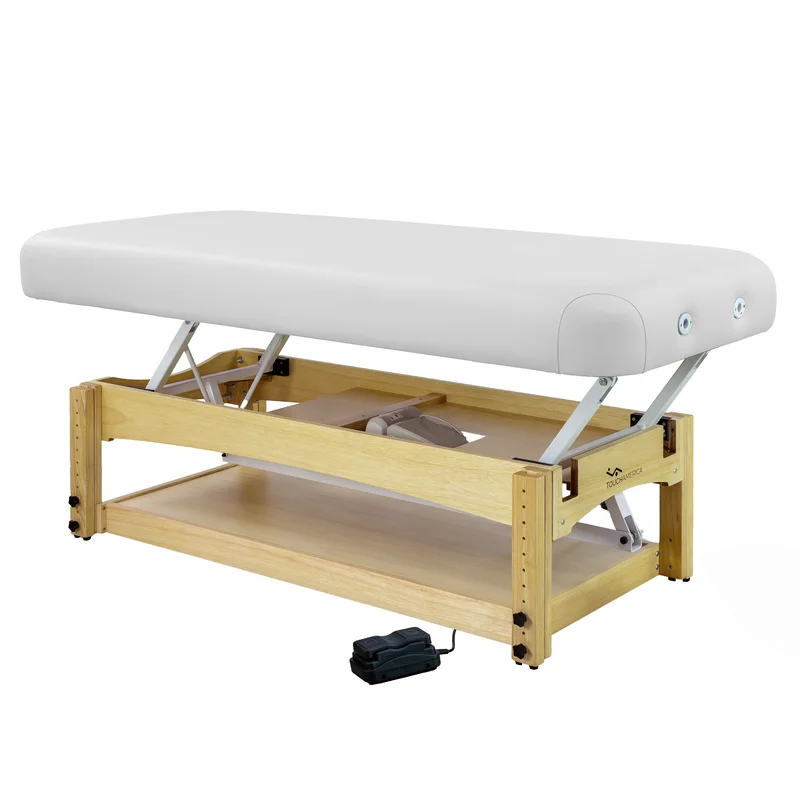

The Olympus Flat Top offers a motorized lift for massage and bodywork. Using a combination of manual and electric height adjustments, the Olympus provides the greatest height range in the industry, and is fully ADA compliant.
Standard Features:
- Outside Leg Spacing 26” width x 56” length
- Inside Leg Spacing 21” width x 51” length
- Height Range:19” to 41” Double adjustable: 10” manual (ext. legs) plus 12” electric lift
- Weight: 125 lbs., Shipping weight: 175 lbs.
- Static weight capacity: 500 lbs.
- Lifting weight capacity: 350 lbs.
- International 220 Volt model available
- Vinyl Color Options: Almond, White, Black or Camel
TOP:
- Top design: One-piece upholstered top, rounded corners, three-layer foam
- Foam: 3″ triple-wrap
- Upholstered top: 30″ width x 73″ length x 6″ total thickness of top + frame
- Leg frame: 20.5″ width x 56.5″ length x 5″ thickness
BASE:
- Outside leg spacing: 26″ width x 56″ length
- Inside leg spacing: 21″ width x 51″ length
- Base materials: Maple legs with 3/4″ veneer/plywood frame
- Motorized lift: Two, powder-coated carbon steel lift arms
- Adjustable leg extension: 1/4″ leg bolts w/ 2 knobs, 11 holes, felt spacers, 2 rubber bumpers per leg
- Height range: 19″ to 41″Double adjustable: 10″ manual (ext. legs) plus 12″ electric lift
- Leg recess: 4″ recess on sides, 12” recess from head section
MOTORS & CONTROLS:
- Lift mechanism: 24V DC Linear actuator with AC control box / transformer, UL recognized
- Power consumption: 4 to 5 amps
- Control Foot pedal; 2nd foot pedal w/ Y-cable available 220-volt model (international) Optional
- Lifting weight: Lifting weight capacity 350 lbs.
- Weight capacity: Static weight capacity 500 lbs.
VINYL:
- UltraSoft-Touch: Lightly textured, super-soft PU vinyl, fabric backed
- Vinyl colors: Almond, White, Black or Camel
GUARANTEES:
- Structure 5 yrs. on replacement parts and 1 yr. on labor**(**Labor warranty for customers in USA only)
- Vinyl & foam: 2 yrs. on materials
- Mechanical/electrical: 2 yrs. on materials
- Optional wood shelf: 1 yr. on materials
WEIGHTS:
- Weight: 125 lbs.
- Shipping weight: 175 lbs.
